Fine Drop Multilub
GST : 06AUPPS9123H1Z5

Automatic Lubrication Pumps

Automatic Lubrication Pumps Specification

Voltage
220V / 380V AC, 24V DC

Discharge Pressure
Max 40 Bar

Mounting Type
Surface / Panel Mounted

Theory
Electromagnetic / Gear

Caliber
Standard

Inlet/Outlet
1/4 BSP or 8 mm speedfit

Features
Microcontroller based, Visual Reservoir Level Indicator, Overload Protection

Head Size
Up to 10 meters

Frequency
50Hz / 60Hz

Max Suction
1.5 meters

Noise Level
<65 dB

Control System
Integrated Electronic Timer

Structure
Compact Modular Design

Standard
ISO 9001:2015

Pressure
Up to 40 Bar

Usage
Automatic lubrication of machine parts

Application
Industrial, Automotive, CNC Machines, Presses

Suction Type
Positive Displacement

Seals Type
Nitrile Rubber (NBR), FKM

Priming
Self Priming

Pump Type
Automatic Lubrication Pump

Capacity
1L, 3L, 4L, 6L Reservoir Options

Automatic Lubrication Pumps Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
Piece

Delivery Time
as per requirements Week

About Automatic Lubrication Pumps

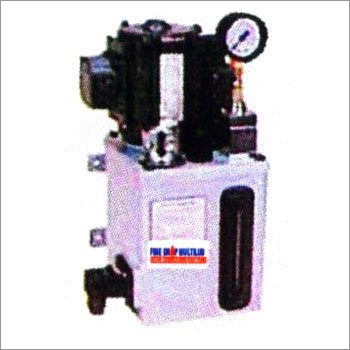

Automatic Lubrication Pumps

Backed with rich experience in this domain, we are counted amongst the top most leading manufacturers and exporters of Automatic Lubrication Pumps. There are numerous varieties available in our range of pumps with varied capacities and pressures. The entire stock of Automatic Lubrication Pumps is highly demanded in varied industries. Manufactured using superior grade raw materials; these lubrication pumps are highly efficient. As per our clients requirements, we also make available these pumps in customized form.

Attributes

Robust construction
Highly efficient
Durable
Long service life

Technical Specifications

Model	Specifications		Pressure
FD-S-2500	Res. Cap.-2.5 Ltrs.	Dis.-0.75LPM	15 kg/ cm²
FD-S-03	Res. Cap.-3.0 Ltrs.	Dis.-1.00LPM	15 kg/ cm²
FD-S-2500/Timer	Res. Cap.- 2.5 Ltrs.	Dis.-0.75LPM	15 kg/ cm²

Advanced Lubrication Technology

These pumps deliver precise and automated lubrication, reducing manual intervention and minimizing downtime. Equipped with a built-in microcontroller and electronic timer, they enable scheduled lubrication cycles suitable for complex machinery and demanding industrial applications.

Versatile Mounting and Application

With a compact modular structure, the pumps can be installed on surfaces or panels, adapting easily to various machines including CNCs, presses, and automotive equipment. Multiple reservoir capacities and flexible inlet/outlet fittings make them suitable for different lubrication requirements.

Quality, Efficiency, and Safety

Manufactured in India by leading exporters and suppliers, these pumps comply with ISO 9001:2015 standards. Integrated features such as visual reservoir level indicators and overload protection ensure long-lasting, safe operation, while keeping noise below 65 dB.

FAQs of Automatic Lubrication Pumps:

Q: How does the automatic lubrication pump operate?

A: The pump uses either electromagnetic or gear-based mechanisms to deliver lubricant automatically to machine parts. The integrated electronic timer and microcontroller ensure precise and scheduled lubrication cycles according to set intervals, enhancing machinery longevity and performance.

Q: What are the advantages of self-priming and positive displacement in this pump?

A: Self-priming capability allows the pump to draw lubricant from the reservoir without manual intervention, while positive displacement ensures a consistent, controlled flow even under varying pressure conditions. This leads to reliable performance and uniform lubrication.

Q: When should I use this pump for my machinery?

A: This pump is ideal for regular, automated lubrication in industrial, automotive, CNC, and press applications where manual lubrication is impractical or inefficient. It is especially beneficial for environments where consistent lubrication is critical to prevent wear and reduce downtime.

Q: Where can the pump be installed on my equipment?

A: The pumps compact modular design supports flexible installation options, including surface or panel mounting. This adaptability allows easy integration onto a wide range of machinery within factories, workshops, or automotive setups.

Q: What maintenance and monitoring processes are involved?

A: Minimal maintenance is required thanks to durable NBR or FKM seals and integrated safety features. The visual reservoir level indicator allows easy monitoring of lubricant levels, while overload protection further ensures trouble-free operation.

Q: What are the key benefits of using this automatic lubrication pump?

A: Key benefits include reduced machine wear, extended service intervals, less manual labor, improved safety, and higher efficiency. Integrated electronic controls and robust construction assure reliable, ISO 9001:2015-compliant operation in demanding industrial settings.
